High Cube Shipping Thawv: 20ft & 40ft|ISO / CSC Certified rau Ntiaj Teb Logistics

Technical Specifications & Dimensional Data

Tsim los rau kev thauj mus los nruab nrab thiab siab - khaws cia ceev, peb lub thawv High Cube (HC) muab ntxiv 300 mm (12 ntiv tes) ntawm ntsug clearance. Txhua chav nyob nruj me ntsis ua raws li ISO 668 thiab ISO 1496-1 cov qauv, txheeb xyuas los ntawm cov koom haum loj (ABS, BV, lossis LR).

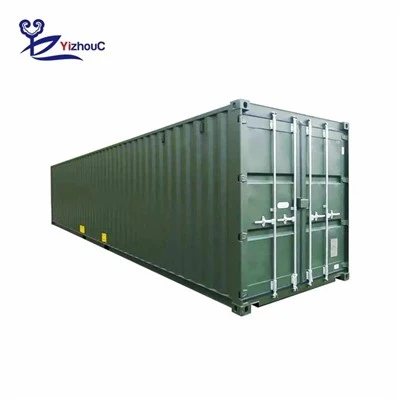

40-foot High Cube Container (40 'HC)

Sab nraud Dimensions	12,192 x 2,438 x 2,896 mm (40'0" x 8'0" x 9'6")
Sab hauv Dimensions	12,032 x 2,352 x 2,698 mm (39'5 "x 7'8" x 8'10")
Cubic Capacity	76.4 m3 (2,700 ft.)
Max. Qhov hnyav tag nrho	32,500 kg (71,650 lbs)
Tare luj	3,900 kg +/- 2% (8,598 lbs)

20-foot High Cube Container (20 'HC)

Sab nraud Dimensions	6,058 x 2,438 x 2,896 mm (20'0" x 8'0" x 9'6")
Sab hauv Dimensions	5,898 x 2,352 x 2,698 mm (19'4 "x 7'8" x 8'10")
Cubic Capacity	37.4 m3 (1,321 ft.)
Max. Qhov hnyav tag nrho	30,480 kg (67,200 lbs)
Tare luj	2,300 kg +/- 2% (5,070 lbs)

Technical & Engineering Resource Center

Khoom siv:Main frames, corner posts, and panels are fabricated from COR-TEN A/B weathering steel (yield strength >= 345 MPa), kom ntseeg tau 4x atmospheric corrosion kuj ntawm cov pa carbon hlau.

Kev tsim kho pem teb:28 hli marine-qib apitong composite plywood, kho rau ya raws / fungal tsis kam. Rated rau 7,270 kg diav rawg - tsheb qag load (ISO 1496-1 ua raws).

Vuam Standards:Semi- tsis siv neeg CO2 roj-shielded arc vuam ua los ntawm AWS D1.1 / EN ISO 9606 certified technicians.

Txheej Txheej Txheej:Txhaj tshuaj - blasted rau Sa 2.5 tus qauv; 3- txheej marine- qib xim txheej txheem (Zinc- nplua nuj epoxy primer + high-build epoxy + PU / Rubber topcoat) ua tiav qhov tsawg kawg nkaus DFT ntawm 220 um.

Manufacturing & Quality Assurance

Peb cov txheej txheem tsim khoom tau ua raws li ISO 9001, tsom rau geometric precision thiab kev tswj hwm kev ua raws:

Precision Fabrication:CNC ntshav txiav thiab automated jigs tuav kab pheeb ces kaum squareness kam rau ua nyob rau hauv +/- 3.0 hli.

Kev tiv thaiv huab cua:100% ntawm cov chav nyob tau txais kev siab siab - kev ntsuas dej siab (0.2 MPa) txhawm rau txheeb xyuas qhov tseeb ntawm kev foob.

Thib peb-Party Certification:Txhua chav tsev raug tshuaj xyuas los ntawm cov neeg soj ntsuam hauv zej zog (ABS, BV, LR, lossis CCS) thiab muab daim ntawv pov thawj CSC Kev Nyab Xeeb Kev Nyab Xeeb thiab TIR Daim Ntawv Pov Thawj.

Daim Ntawv Qhia Kev Xaiv Daim Ntawv Thov

Cov thawv ntim khoom siab ua haujlwm tseem ceeb hauv kev thauj mus los hauv hiav txwv, kev thauj khoom nruab nrab ntawm kev tsheb nqaj hlau, thiab kev ua haujlwm ruaj khov.

Lub teeb yuag & siab -Ntau Cargo Logistics:Qhov zoo tshaj plaws rau kev thauj khoom tsawg-cov khoom ntom ntom (piv txwv li, textiles, rooj tog zaum, electronics, lub teeb automotive Cheebtsam) qhov twg ntsug ntim yog maximized ua ntej mus txog qhov siab tshaj plaws payload txwv.

Modular Industrial Enclosures & Architecture:Siv los ua lub hauv paus rau ntawm -chaw ua haujlwm engineering, lub tshuab hluav taws xob enclosures, chav tswj dej kho mob, thiab cov chaw ua haujlwm txawb vim yog lub taub hau txuas ntxiv uas xav tau rau cov rwb thaiv tsev sab hauv, HVAC ducting, thiab cable tais.

Kev ruaj ntseg Industrial & Project Cia:Deployed nyob rau hauv kev tsim kho thiab mining qhov chaw rau kev ruaj ntseg cia ntawm hnyav machinery qhov chaw, rhiab instrumentation, thiab cov lus nug uas yuav tsum tau robust huab cua thiab tamper tiv thaiv.

Tus neeg muag khoom ntsuam xyuas daim ntawv teev npe rau kev yuav khoom B2B

Ua ntej ua tiav koj qhov kev txiav txim, xyuas kom tus neeg muag khoom muab:

CSC Daim Ntawv Pov Thawj:Tsis yog tus kheej - nplaum, tab sis cov qauv hlau phaj.

Steel Mill Test Certificate (MTC):Kev lees paub COR-TEN tshuaj muaj pes tsawg leeg.

Xim DFT Logs:Verification of >= 220 um txheej thickness.

Logistics Strategy:Clear SOC (Shipper-Owned Container) los yog tiaj tus -rack shipping xaiv.

FAQ

Q: Dab tsi yog qhov tshwj xeeb qhov siab clearance ntawm High Cube?

A: Lub Tshuab Kub Kub muab qhov siab sab hauv ntawm 8'10 "(2,698 mm), raws nraim 308 hli siab dua li lub thawv qhuav txheem.

Q: Cov chav no puas haum rau cov qauv tsim qauv / chaw ua haujlwm?

A: Yog. Tus qauv COR-TEN thav duab txhawb nqa HVAC kev teeb tsa, qhov rais txiav tawm, thiab sab hauv framing. Peb muab cov qauv qauv lossis kho "dawb" modules rau kev hnav khaub ncaws ntxiv.

Q: Kuv yuav txheeb xyuas qhov xwm txheej ntawm cov thawv rau ib zaug -trip exports?

A: Tag nrho peb cov thawv tshiab raug tshuaj xyuas los ntawm thib peb - tog neeg soj ntsuam rau "cargo- tsim nyog" raws li txoj cai ua ntej tawm hauv lub Hoobkas.
